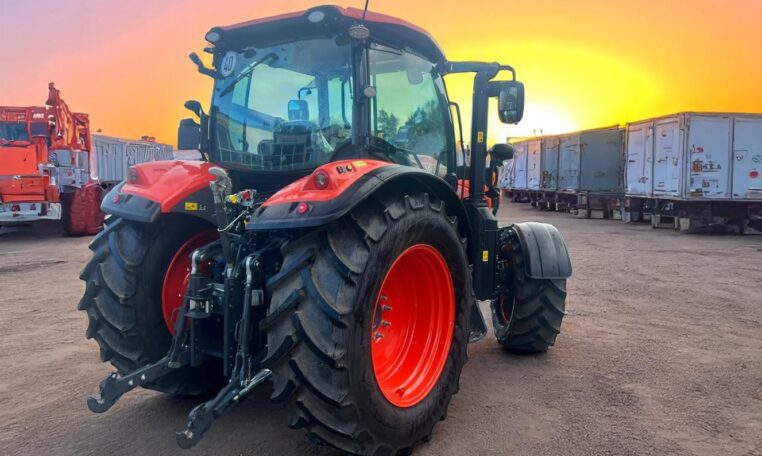

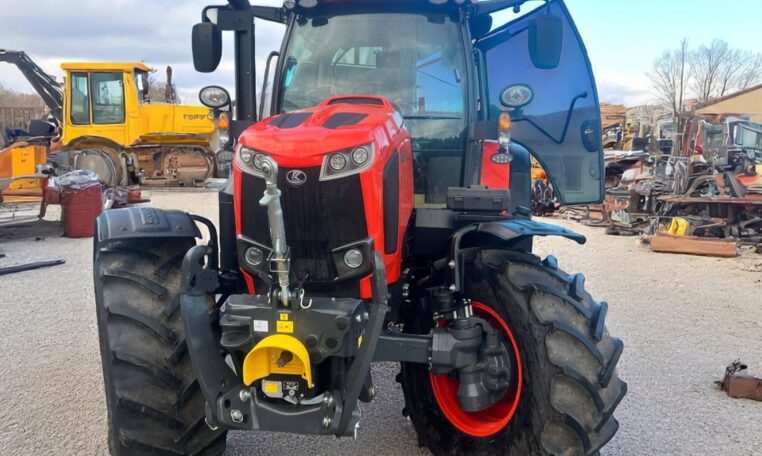

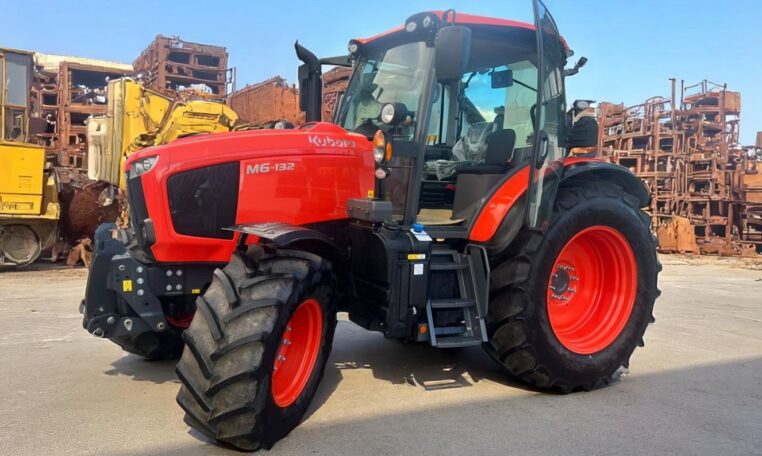

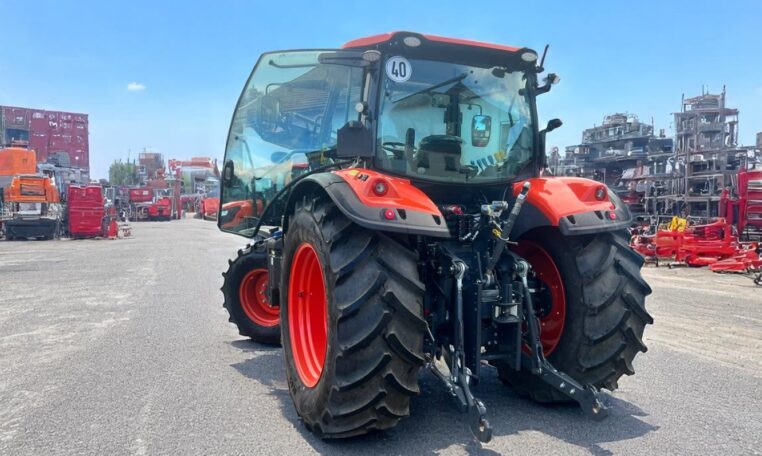

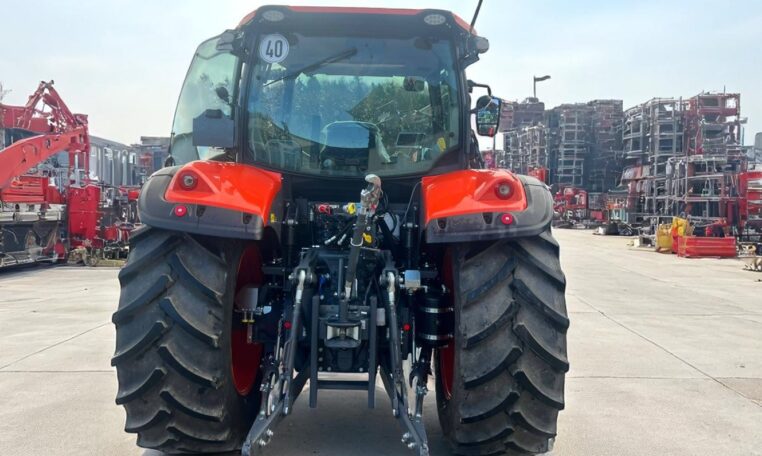

2023 Kubota M6132

Description
Engine:
6,124 cm³, 4-cyl: KUBOTA turbo diesel engine with 4-valve technology, transport boost from 20 km/h
Intercooler, common rail direct injection, external water-cooled exhaust gas recirculation (EGR)
Diesel particle filter (DPF), SCR catalytic converter, emissions level V according to Vo (EU) 2016/1628, diesel tank 230 l
AdBlue® 20 l, particle filter maintenance interval 6000h, alternator 150 A,
2 programmable speed memories
Transmission:
Kubota Powershift powershift transmission: 24V+24R (0.9 km/h min)
Kubota Powershift powershift transmission. with creeper gear: 32V+32R (0.2 km/h min) with creeper gear (optional)
8-speed powershift in 3 groups, electronically switched, automatic mode (8 powershift gears),
Xpress restart function, multifunctional drive lever, ECO speed (40 km/h at 1645 rpm),
Electro-hydraulic switched reversing gear with modulation adjustment
4 PTO speeds – 540/540E/1000/1000E
All-wheel drive:
All-wheel drive engagement and front/rear differential locks can be switched electro-hydraulically
Automatic function (steering angle/speed)
Differential lock: 100% front and rear axle
Front axle/steering: sprung portal front axle with double, maintenance-free, oil-running
Bevel gear drive / bi-speed, two-stage four-wheel drive
Dimensions with 480/65 R24 // 600/65 R38:
Turning radius: 4.5 m Total length: 4,810 mm
Wheelbase: 2,690 mm Overall width: 2,520 mm
Track width: 1,900 mm v/1,860 mm h Total height: 2,890 mm
Weight depending on equipment 6,000 kg / Permitted total weight: 9,800 kg
Cabin:
4-post cabin (1.66m interior width) with panoramic side windows and pop-up glass roof;
mech. cabin suspension; Air conditioner; Driver’s seat with air suspension (Grammer MSG95A-731);
padded and folding passenger seat; 4 storage compartments; Document network at the headquarters
automatic turn signal reset; Tilt and height adjustable steering wheel
Instrument panel with integrated LCD display; interior rearview mirror; Cabin lighting
ascent lighting; Light panel with coming home function; 10 work lights (halogen)
Bottom-mounted windshield wiper with windshield cleaning in clear-view positioning,
Rear window w. with window cleaning
Hydraulics:
closed system (CCLS) for all functions, including steering;
3x control unit dw with flow divider (condition in the cabin), 1x SCD, 2x FD, option: 4th control unit
Hydraulic pump delivery rate: 115 liters/min; Withdrawal quantity 36 liters
Power lift:
hydraulic brake; License plate holder front right. on the exhaust pipe
